A SVM from Scratch-Part1

Support Vector Machines (SVM) are a type of supervised machine learning algorithm used primarily for classification tasks. The core idea behind SVM is to find the best boundary (or hyperplane) that separates a given set of data points, thus performing the classification. In general we are interested in finding a hyperplane, which separates the different classes with the maximum possible margin, that is the distance between the closest data points (called support vectors) from each class to the boundary. In the first part of this post we will only consider linear-separabable problems, that is problems for which a straight hyperplane can divide the classes. In the second part of the series we will see how we can extend the SVM formalism to map n-dimensional data (with n distinct features) into a higher dimensional space. In this higher dimensional space a hyperplane which cleanly separates the data may exist.
The hyperplane is a decision boundary in an n-dimensional space. Any hyperplane (for our n-dimensional data vectors $\mathbf{x_i}$) can be described using the following equation: where $\mathbf{w}$ is a real valued vector of the same dimension as our data vectors $x$ and b is a real number. So each $\mathbf{x_i}$ has n features (dimensions) and there are N of them, each represents a single example and has a label $y_i$. Suppose we found an appropriate hyperplane for the classification taks at hand. We could then predict the label (i.e. the class) of some new input feature vector $x$ by evaluating: Where sign simply returns +1 if $wx-b > 0$ and -1 if $wx-b < 0$. So effectively eq. tells us on which side of the hyperplane the new feature vector resides and returns the corresponding label. The goal of SVM is to leverage our dataset to find the optimal values $w^\star$ and $b^\star$, which form a beneficial hyperplane. Once that hyperplane is found eq. 2 defines our model. We can find $w^\star$ and $b^\star$ by solving an optimization problem. The optimization problem we have to solve is finding the hyperplane with the largest margin under certain constraints. Note that SVM is a supervised learning algorithm, which is trained on example data. Each example consists of some feature vector $x_i$ and it's corresponding label $y_i$: $(x_i, y_i)$. Where $x_i$ is a column vector with n features. Hence we can require, that: This allows us to combine the two constraints into a single equation: The margin of the hyperplane (which we want to maximize) is given by: $margin = \frac{2}{||w||}$ In summary we can thus say that we want to minimize $||w||$ while respecting $(\mathbf{wx_i} - b) \cdot y_i \geq 1$, $i$ from 1..N. In practice we will not minimize $||w||$ but which is equivalent, but does allow us to perform quadratic optimizations later on. Eq. 5 represents our primal loss function which we need to minimize in order to find a good hyperplane. It is the loss function for the hard margin classifier.

Dealing with noise

As you know real world data sets are far from perfect and exhibit missing data points and noise. So how can we deal with misclassifications introduced due to noise in our data and still obtain a good classifier? In order to tolerate misclassifications up to a certain point, we expand eq. 5 by introducing slack variables $\xi_i$. These slack variables soften the inequality constraint by allowing certain feature vectors to violate the margin. For $0 < \xi_i < 1$ the point is within the margin and classified correctly, but the margin is smaller than we like it to be. For $\xi >= 1$ the point is misclassified and resides on the wrong side of the hyperplane. So in general we want these slack variables to stay as small as possible. We can achieve this by adding them to our loss function (see eq. 5): Here we also introduced the hyperparamter C, which balances the cost of misclassifications. For $C=0$ the algorithm will only maximize the margin, for $C=\infty$ the size of the margin is neglected and the algorithm will just try to minize the loss. So C controls the trade-off between maximizing the margin and minimizing the loss. $k$ is another hyperparameter which controls the impact of the slack variables and is typically selected to be 1 or 2. Since we now allow some data points to fall within the margin or even the wrong side of the hyperplane, this is the loss used in a soft margin classifier (in contrast to the hard margin classifier).
We would like to include the constraint given by eq. 6 into our loss function so we can then solve it using gradient descend. So let's solve eq. 6 for $\xi_i$ However gradient descend cannot handle inequalities such as the one above. So we cannot yet plug in that inequality into our loss function. To incorporate the slack variables into the loss function we have to tweak it a little. Let's consider the values $\xi_i$ can have and their respective meaning for the classifier: These considerations motivate the hinge loss function, which simply becomes zero, when the constraint given by eq. 4 is satisified; that is if $\mathbf{wx_i}$ lies on the correct side of the decision boundary. For data which lies on the wrong side of the boundary the hinge loss function produces a penalty value, which is proportional to that data's offset from the decision boundary. Hinge loss allows us to consider noisy data, which may not always reside on the proper side of the hyperplane. Another nice property of the hinge loss function is that it's subdifferentiable, that is a gradient can be computed on each segment of the piecewise function. We can now incorporated hinge loss into our previous loss function (see eq. 7). When we replace the slack variables $\xi_i$ with the hinge loss function and choose $k=1$ we obtain: Note how this formulation allowed us to encode the contraints given by eq. 4 into our loss function. Thus we are no longer concerned with two simultaneous problems, but can no focus on minimizing $L$ and thereby solve the optimization problem. The first part of our loss function is fully differentiable and since the hinge loss function is subdifferentiable the combined loss function is now suitable for gradient descend. This is simply done by computing the partial derivatives of L with respect to $w$ and $b$, because these are the parameters we want to find. Note that we can simply neglect all terms for which the hinge loss $\xi_i$ would be zero, because these terms vanish. In fact, from our above considerations we see that only the terms for which: $y_i (\mathbf{w x_i} + b) <= 1$ holds contribute to the gradient (see eq. 9). And this is precisely the definition of support vectors. All vectors that influence the position and orientation of the decision boundary (aka. hyperplane) are called support vectors. Removing or modifying a support vector would change the decision boundary and/or the margin of the boundary.

Implementation of the linear SVM classifier with gradient descend

Using eq. 4, 11, 12 and 13 the implementation of the SVM classifer becomes straight forward. We simply construct a wrapper class, which holds the hyperparamter $C$, the variables $w$ and $b$ determined during training and the training data (feature vectors $X$ and labels $y$). We then subsequently implement the methods corresponding to the above equations:

• eq. 4: corresponds to _margin

• eq. 11: corresponds to _cost (could also be called loss)

• eq. 12, 13: are used in the fit method (see dL_dw and dL_db)

• eq. 2: corresponds to predict

Here I called the right hand side of eq. 11 cost which produces a loss value for a given list of feature vectors $X$ and their labels $y$.

import seaborn as sns
from sklearn import preprocessing
from sklearn.preprocessing import StandardScaler
import numpy as np
import matplotlib.pyplot as plt

class LinearSVM:
    def __init__(self, C=1.0):
        self._support_vectors = None
        self.C = C
        self.w = 0
        self.b = 0
        self.X = None
        self.y = None

        # number of data points
        self.n_data = 0

        # number of dimensions:
        self.n_dim = 0

    def _decision_fn(self, X):
        return X.dot(self.w) - self.b

    def _margin(self, X, y):
        return y  self._decision_fn(X)

    def _cost(self, margin):
        return (1/2) self.w.dot(self.w) + self.C  np.sum(np.maximum(0, 1-margin))

    def fit(self, X, y, lr=1e-3, epochs=500):
        # retain X and y for plotting:
        self.X = X
        self.y = y

        self.n_data, self.n_dim = X.shape   # (100, 2) in our case
        self.w = np.random.randn(self.n_dim)
        self.b = 0

        losses = []
        for _ in range(epochs):
            margin = self._margin(X, y)
            loss = self._cost(margin)
            losses.append(loss)

            # compute the misclassified points, because these are the only ones where
            # the hinge loss is non-zero. The misclassified points are those for which:
            # y (wx + b) < 1, so margin < 1:
            misclassified_idx = np.where(margin < 1)[0]

            # calculate the derivates (gradient)
            dL_dw = self.w - self.C  y[misclassified_idx].dot(X[misclassified_idx])
            dL_db = self.C  np.sum(y[misclassified_idx])

            # update:
            self.w -= lr dL_dw
            self.b -= lr dL_db

        self._support_vectors = np.where(self._margin(X, y) <= 1)[0]

    def predict(self, X):
        return np.sign(self._decision_fn(X))

    def score(self, X, y):
        P = self.predict(X)
        return np.mean(y == P)

The gradient descend optimization happens completely in the fit method. In each iteration or epoch we first filter our data points, for those which do not satisfy eq. 4 and hence are not properly classified (or at least have a too low distance to the decision boundary). Then we use these data points together with eq. 12 and 13 to compute the gradient. Finally we update $w$ and $b$ to move a tiny step (according to the learning rate) opposite to the direction of the gradient. Essentially some realy basic gradient descend algorithm. After the training loop, we update the support vectors, which are those which remain below the margin of the decision boundary when the training finishes.
We add the predict function according to eq. 2. Finally score will just count for how many sample points in $X$ the prediction P equals the correct label $y$ and divide that number by the number of all samples.

Application of the linear SVM

Let's now apply the SVM to some actual data. I will use the popular Iris data set, which contains features and labels of three distinct species of iris flowers. We use the scikit LabelEncoder to map the species label to a numerical category. However the LabelEncoder will by default return the labels 0 and 1, where 0 means not part of that species and 1 means is of species. Due to eq. 4 we require -1 and 1 as labels, so we have to apply our custom mapping.

def load_data(cols):
    iris = sns.load_dataset("iris")
    iris = iris.tail(100)

    le = preprocessing.LabelEncoder()
    y = le.fit_transform(iris["species"])

     # Map default labels (0, 1) to custom labels (-1, +1)
    custom_mapping = {0: -1, 1: +1}
    y = np.array([custom_mapping[label] for label in y])

    # drop the species column since it's now encoded in the labels y
    X = iris.drop(["species"], axis=1)

    # only consider the columns given:
    if len(cols) > 0:
        X = X[cols]

    return X.values, y

For simplicity and easier plotting we will also only consider two features of each flower. Here I have choosen the features petal length and petal width. For the curious: The petal is some specific leaf of iris flowers:

Finally let's write the driver code to load the data and feed it through the SVM classifier.

if __name__ == "__main__":
    # only consider petal_length and petal_width:
    cols = ["petal_length", "petal_width"]
    X, y = load_data(cols)

    # scale the data:
    X = StandardScaler().fit_transform(X)

    C_params = [1.0, 5.0, 15.0, 500.0]
    for C_param in C_params:
        model = LinearSVM(C=C_param)
        model.fit(X, y)
        print(f"Score for C={C_param}: {model.score(X, y)}")
        model.plot_decision_boundary()

    plt.show()

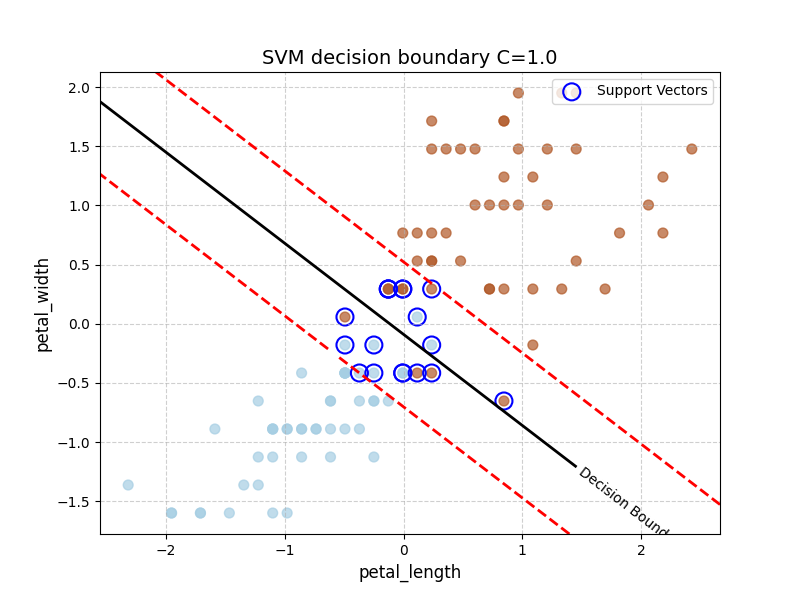

I ran the SVM for multiple values of $C$ to show it's effect. Recall that $C$ controlls the tradeoff between the intertwined goals of maximizing the margin and minimizing the loss. We can plot the results by adding this plot method to the LinearSVM* class:

class LinearSVM:
    ...

    def plot_decision_boundary(self):
        # Scatter plot of the dataset with labels
        plt.figure(figsize=(8, 6))
        plt.scatter(
            self.X[:, 0], self.X[:, 1], c=self.y, cmap=plt.cm.Paired, s=50, alpha=0.7
        )

        ax = plt.gca()  # Get the current axis
        xlim = ax.get_xlim()
        ylim = ax.get_ylim()

        # Create a dense grid for evaluating the decision function
        xx = np.linspace(xlim[0], xlim[1], 100)
        yy = np.linspace(ylim[0], ylim[1], 100)
        YY, XX = np.meshgrid(yy, xx)
        grid_points = np.vstack([XX.ravel(), YY.ravel()]).T
        Z = self._decision_fn(grid_points).reshape(XX.shape)

        # Plot decision boundary and margins
        contour = ax.contour(
            XX, YY, Z, levels=[-1, 0, 1], colors=['red', 'black', 'red'],
            linestyles=['--', '-', '--'], linewidths=2
        )
        ax.clabel(contour, inline=True, fontsize=10, fmt={-1: '', 0: 'Decision Boundary', 1: ''})

        # Highlight support vectors
        plt.scatter(
            self.X[self._support_vectors, 0], self.X[self._support_vectors, 1],
            s=150, linewidth=1.5, facecolors='none', edgecolor='blue', label='Support Vectors'
        )

        plt.title(f"SVM decision boundary C={self.C}", fontsize=14)
        plt.xlabel("petal_length", fontsize=12)
        plt.ylabel("petal_width", fontsize=12)
        plt.legend(loc='upper right')
        plt.grid(True, linestyle='--', alpha=0.6)

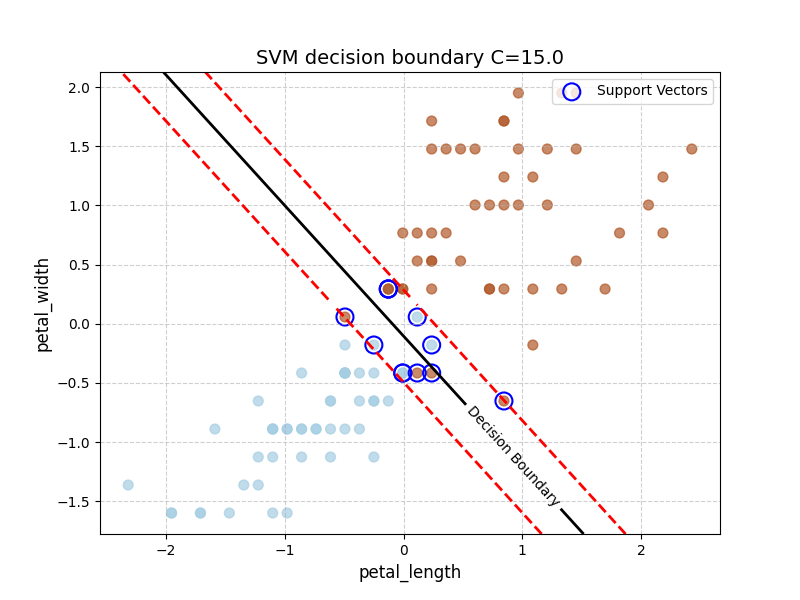

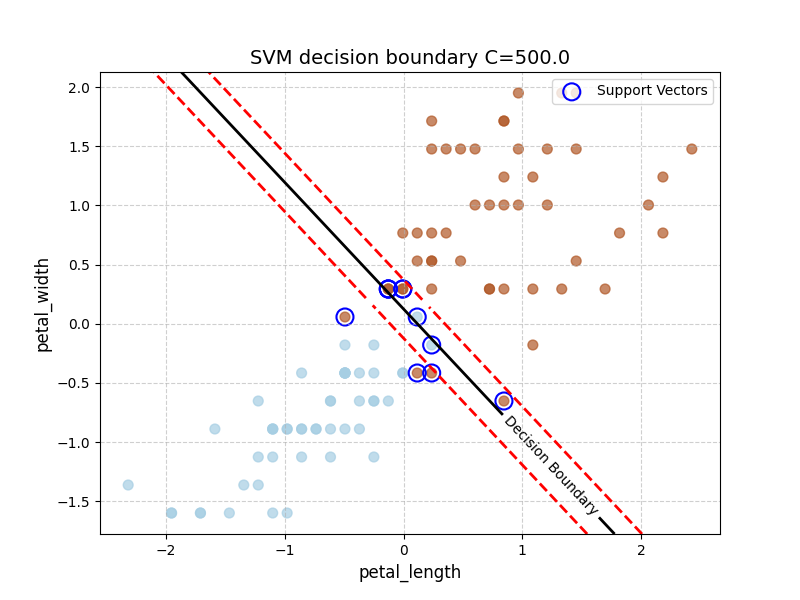

Note how a higher value for $C$ reduces the loss and thereby the misclassification on the training data. At the same time the margin of the decision boundary shrinks, which leaves more room for error on unseen data. So in a way $C$ allows us to control how stongly we fit the SVM to our training data. A high $C$ will yield good results on the training data, but only allow for a low margin, which is bad since new feature vectors are more easily misclassified.

Coming up next

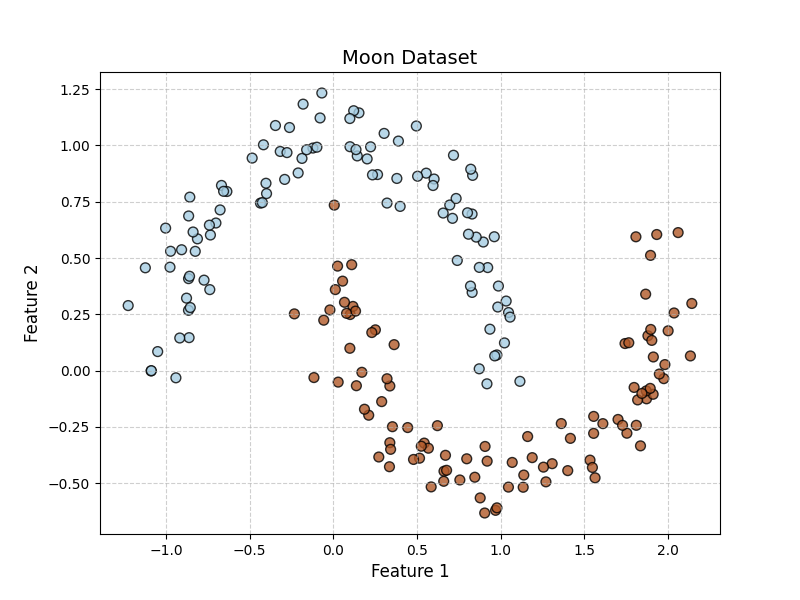

At the beginning of this post we stated that we will focus on SVM's with linear decision boundaries. But depending on the data a curved decision boundary could make a lot of sense. Consider for example this data set:

In the next part we will find out how we can expand our SVM to allow it to learn arbitrary decision boundaries.
